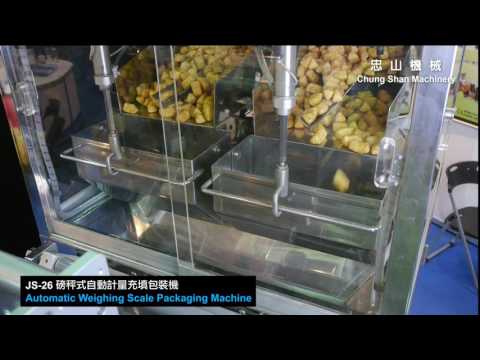

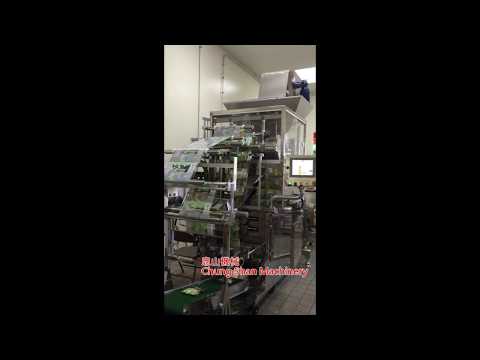

JS-26 Automatic Computerized Weighing & Packaging Machine
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Weighing Machine, Packaging Machine, Weighing Scale Packaging Machine and Automatic Computerized Weighing & Packaging Machine.
Application
- Applicable packing products :Various powder & granule products, such as:sugar, salt, macaroni, chips, popcorn, cracker, candy, tea, beans, peanuts, pet food, screws, washer…etc., or other related products.
- Applicable packing materials :Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- PLC Control + Touch Panel for ease operation.
- Touch Panel for easy usage to set up: Filling weight, cutting mode(eye mark or length cutting), bag length, speed, counter, sealing temperature, memory record…etc.
- Auto eye mark tracing in a short time.
- Pneumatic sealing enable to set up sealing & cutting time according request.
- Pneumatic sealing construction with SMC cylinder drive for stable sealing performance.

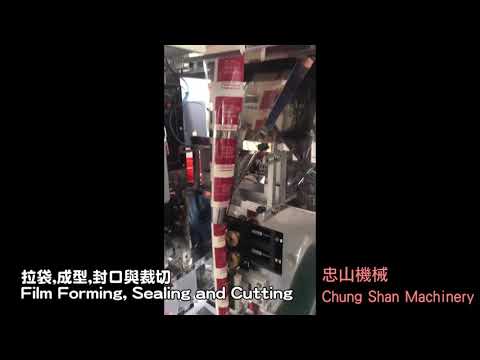

- Sealing and cutting operations are air cylinder activated for fast, highly efficient operations.
- Pneumatic sealing type for nice sealing packaging performance.
- Auto warning display for quick trouble shooting display.
- Multiple memory programs for record different packaging data.
- Enable to adjust filling weight directly through the panel.

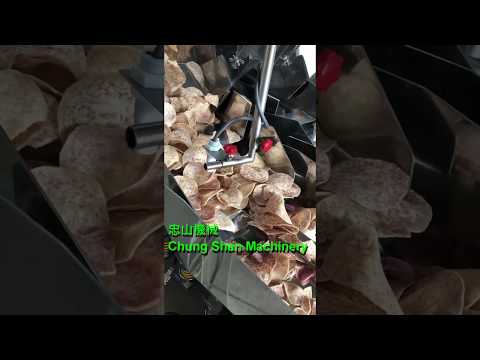

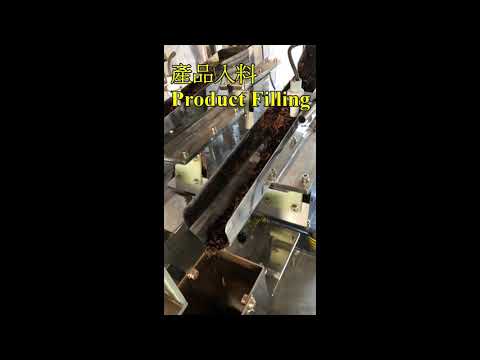

- 2 stages vibration loading with large & micro-feeding for smooth & accurate filling.
- Film tension control for stable film filling & pulling.
- Individual control for film pulling, sealing and cutting.
- All component in direct contact with product are made with stainless steel or food sanitary standard.
- PID function Temp. controller for each sealing part with stable sealing performance.
- Machine can be made 1, 2 or 4 scales according to request.
- Bag width is adjustable by changing bag former guide.
- Attached speed adjustable 1M product output conveyor.
- Product input conveyor is optional device, include auto refill function to work with packaging machine.
Specification
| JS-26 Pneumatic Sealing+Weighing Scale |
| Sealing Style |
Pillow type packaging(one option) |
| Power |
220V, 50 or 60 Hz, single phase(upon request) |
| Film Width |
240-480mm |
| Bag Length |
150-300mm |
| Filling Weight |
30-100g/100-1000g/1000-2000g (varies with product density) |
| Packaging Speed(1 scale) |
About 8-10 bags/min |
| Packaging Speed(2 scale) |
About 10-15 bags/min |
| Packaging Speed(4 scale) |
About 20-25 bags/min |
| Machine Dimension |
240 x 155 x 235cm(L x W x H) |
| NET Weight |
880kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |
