JS-14A Automatic Quantitative Liquid Filling & Packaging Machine
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Filling Machine, Cosmetics Packaging Machine, Liquid Packaging Machine, Cosmetics/Liquid/Paste Packaging Machine and Automatic Quantitative Liquid Filling & Packaging Machine.
Application
- Applicable packing products :
Food related, such as: oil, chicken essence, bubble tea, tomato ketchup, soy sauce, paste, chili sauce, honey, juice, wasabi, mayonnaise, jelly…etc.
Cosmetic related, such as: lotion, cream, shampoo, conditioner, foundation…etc.
Other items, such as: grease oil, biotechnology product, and other liquid & paste products.
- Applicable packing materials :Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE …etc.
Features
- Mechanical type operation with 1/4 motor, reducer, chains, and gear.
- Piston injection filling, filling volume and packing speed adjustable on the machine directly.
- Hopper equip with speed adjustable mixer device.
- Suitable for packaging product with small ingredient.
- PLC controlled photocell device with auto tracing function.
- Patent design anti-drop filling ensure clean sealing performance.
- Safety sealing line at side with tight sealing performance.
- All component in direct contact with product are made with stainless steel or food sanitary standard.
- Individual Temp. controller with PID function for each sealing part.
- Bag width is adjustable by changing bag former guide.
Optional Device
- Date coder, double jacketed heated hopper, level indicator, mixer device, output conveyor, nitrogen air connector, quantity warning, stainless steel frame…etc., and other required device upon request.
-
Sealing Type
Specification
| JS-14 A Mechanical Type+Mixer Function |
| Sealing Style |
3 sides, 4 side or pillow type packaging(one option) |
| Motor |
1/4HP Motor |
| Power |
220V, 50/60 Hz, single phase(upon request) |
| Film Width |
60-140mm or 80-220mm |
| Bag Length |
50-120 or 70-160mm |
| Filling Weight |
1-10 / 10 – 30 / 30-80 / 80-150 (varies with product density) |
| Packaging Speed |
About 20-60 bags/min |
| Machine Dimension |
80 x 85 x 215cm(L x W x H) |
| NET Weight |
480kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |

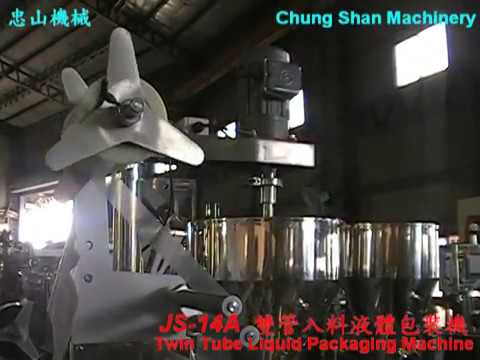

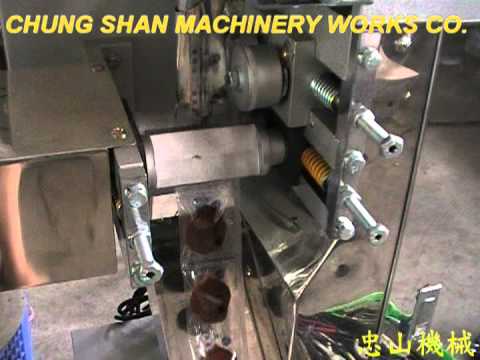

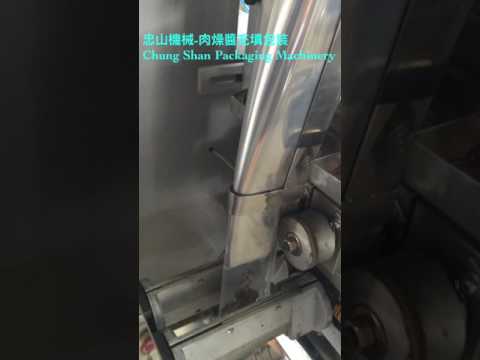

Video
-
