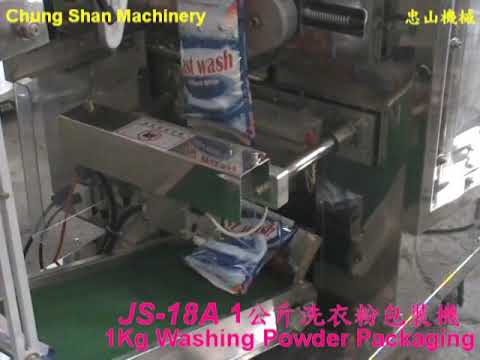

JS-18A Automatic Quantitative Powder & Granule Filling & Packaging Machine
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Powder Filling Machine, Granule Packaging Machine, Filling And Packaging Machine, Powder/Granule Packaging Machine and Chung .
Application
- Applicable packing products :Various powder & granule, such as: sugar, salt, seasoning powder, beans, nuts, seeds, detergent powder…etc.
- Applicable packing materials :Heat seal suitable filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- PLC controlled with touch panel for ease operation.
- Volumetric Filling method with metering dish & cups.
- Touch panel enable to set up: bag length, eye mark cutting, vibration, counter, sealing temperature, packaging data memory…etc.
- Pneumatic sealing construction with SMC cylinder drive for stable sealing performance.
- Sealing and cutting operations are air cylinder activated for fast, highly efficient operations.
- Pneumatic sealing enable to set up sealing & cutting time according request.
- Japanese SMC cylinder for stable sealing & cutting performance.
- Film tension control for stable film filling & pulling.
- Vibration loading & agitator for low fluidness product to ensure smooth filling process.
- Magnetic knocker support product filling completely.
- Convenient auto quantity warning function for efficient package.
- Auto warning display for quick trouble shooting.
- PID function Temp. controller for each sealing part with stable sealing performance.
- All component in direct contact with product are made with stainless steel or food sanitary standard.
Optional Device
- Date coder, hopper level indicator, product input / output conveyor, nitrogen air connector and other required device upon request.
-
Sealing Type
Specification
| JS-18A PLC Control + Pneumatic Sealing |
| Sealing Style |
Pillow type packaging(one option) |
| Motor |
40W*1, 60W*1, 120W*1 |
| Power |
220V, 50/60 Hz, single phase(upon request) |
| Film Width |
240-480mm |
| Bag Length |
100-300mm |
| Filling Weight |
100-500g/500-1000g (varies with product density) |
| Packaging Speed |
About 10-20 bags/min |
| Machine Dimension |
150 x 145 x 225cm(L x W x H) |
| NET Weight |
800kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |
