JS-14 Automatic Quantitative Liquid Filling & Packaging Machine (PLC Control+Servo Motor+Pneumatic Seal)
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Filling Machine, Cosmetics Packaging Machine, Liquid Packaging Machine, Cosmetics/Liquid/Paste Packaging Machine and Automatic Quantitative Liquid Filling & Packaging Machine.
Application
- Applicable packing products : Food related, such as: soy bean milk, oil, tomato ketchup, soy sauce, chicken essence, paste, chili sauce, honey, juice,…etc.
Cosmetic related, such as: lotion, cream, shampoo, conditioner, foundation…etc.
Other items, such as: grease oil, biotechnology product, and other liquid & paste products.
- Applicable packing materials :Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, NYLON+LLDPE…etc.
Features
- PLC Control + Servo Motor for ease & efficient packaging works.
- Pneumatic sealing construction with SMC cylinder drive for stable sealing performance.
- Sealing and cutting operations are air cylinder activated for fast, highly efficient operations.
- Piston injection with servo motor & screw control filling for accurate filling volume.
- Filling control with SMC cylinder drive ensures clean sealing performance.
- Enable to set up sealing & cutting time separately.
- Patent design anti-drop filling function ensure clean sealing performance.
- 90% setting are through touch panel for user friendly operation.
- Touch panel enable to set up: filling volume, bag length, eye mark cutting, speed, counter, sealing temperature, packaging data memory…etc.
- Film tension control for stable film filling process.
- Auto detect function with quick trouble shooting display.
- Safety sealing line at side to prevent leakage situation with tight sealing performance.
- Individual temperature controller with PID function for each sealing part.
- All component in direct contact with product are made with stainless steel or food sanitary standard.
Sealing Type
Specification
| JS-14 PLC Control+Servo Motor+Pneumatic Seal |
| Sealing Style |
Pillow type packaging |
| Power |
220V, 50 or 60 Hz, single phase(upon request) |
| Film Width |
240-480mm |
| Bag Length |
200-400mm |
| Filling Range |
100-500cc / 500-1000cc / 1000-2000cc(varies with product density) |
| Packaging Speed |
About 10-30 bags /min |
| Machine Dimension |
280x 120 x 190cm(L x W x H) |
| NET Weight |
880kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |

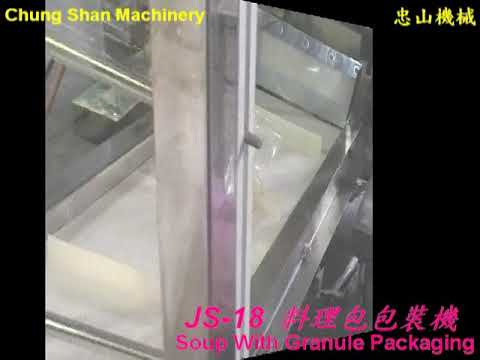

Video
-
