JS-10 Automatic Quantitative Filling And Packaging Machine (Mechanical Type + Vibration Loading)
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Powder Filling Machine, Granule Packaging Machine, Filling And Packaging Machine, Powder/Granule Packaging Machine and Automatic Quantitative Filling And Packaging Machine .
Application
- Applicable packing products :Various powder & granule, such as: tea, 3 in 1 coffee, coffee bean, milk tea powder, herbal tea, peanuts, chocolate ball, crackers, pet food…etc.
- Applicable packing materials :Heat seal suitable cotton filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- Mechanical type operation with 1/4 motor, reducer, chains, and gear.

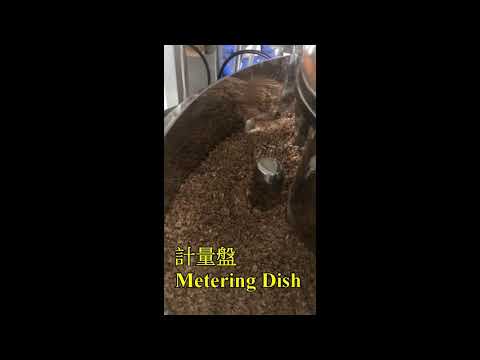

- Volumetric Filling method with metering dish & cups.
- Metering cups are easily to change within few minutes.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- PLC controlled photocell device with auto track function.
- Individual Temp. controller with PID function for stable sealing performance.
- Bag width is adjustable by changing bag former guide.
- Bag length is adjustable on the machine directly.
- Machine constructed by iron cast for long time operation stability & durability.
- Servo type construction available upon request.
Optional Device

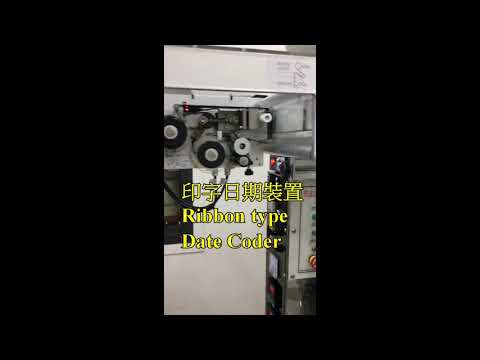

- Date coder, level indicator, mixer device, output conveyor, nitrogen air connector, quantity warning, stainless steel frame, height adjustable dish and other required device upon request.
-
Sealing Type
Specification
| JS-10 Mechanical Type |
| Sealing Style |
3 sides, 4 side or pillow type packaging(one option) |
| Motor |
1/4HP standard Motor x 1, Reducer x 1 |
| Power |
220V, 50 or 60 Hz, single phase(upon request) |
| Film Width |
60-160 or 80-220mm |
| Bag Length |
50-110 or 70-160mm |
| Filling Weight |
1-10g / 10-30g / 30-60g / 60-100g (varies with product density) |
| Packaging Speed |
About 20-90 bags /min |
| Machine Dimension |
75 x 60 x 175cm(L x W x H) |
| NET Weight |
330kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film. |
