JS-10A Automatic Quantitative Powder & Granule Filling & Packaging Machine (Servo Type + Vibration Loading)
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Powder Filling Machine, Granule Packaging Machine, Filling And Packaging Machine, Powder/Granule Packaging Machine and Automatic Quantitative Powder & Granule Filling & Packaging Machine.
Application
- Applicable packing products :Various powder & granule, such as: sugar, salt, tea, grain powder, green tea powder, seasoning powder, milk powder, ground coffee, detergent powder, …etc.
- Applicable packing materials :Heat seal suitable filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- Servo motor with Touch panel for user friendly operation.
- Touch panel enable to set up: cutting mode (eye mark cutting or length cutting), packing speed, vibration, counter, sealing temperature, packaging data memory…etc.
- Multiple memory programs to record/read different packaging data.
- Auto eye mark tracing in a short time.
- Auto warning display for quick trouble shooting.
- Convenient auto quantity warning function for efficient package.
- Machine build with auto calibration to have correct product filling & bag cutting position.
- Vibration loading & agitator for low fluidness product to ensure smooth filling process.
- Volumetric Filling method with metering dish & cups.
- Product level sensor on metering dish for auto refill from hopper ensure stable filling weight.
- Magnetic knocker support product filling completely.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- PID function Temp. controller for each sealing part with stable sealing performance.
- Bag width is adjustable by changing bag former guide.
- Bag length 50-200mm is adjustable on the panel directly.
Optional Device
- Date coder, hopper level indicator, product input/output conveyor, nitrogen air connector, height adjustable dish and other required device upon request.
Sealing Type
Specification
JS-10A Servo Type + Vibration Loading |
Sealing Style |
3 sides, 4 side or pillow type packaging(one option) |
Motor |
Servo Motor |
Power |
220V, 50 or 60 Hz, single phase(upon request) |
Film Width |
60-160 or 80-220mm |
Bag Length |
50-200mm |
Filling Weight |
1-10g / 10-30g / 30-60g / 60-100g (varies with product density) |
Packaging Speed |
About 20-90 bags/min |
Machine Dimension |
135 x 105 x 200cm(L x W x H) |
NET Weight |
450kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film. |

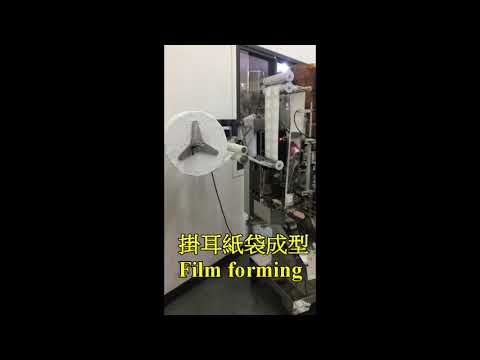

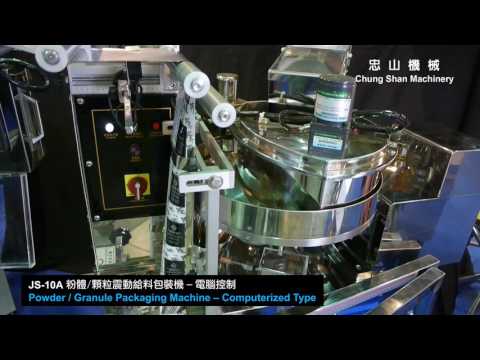

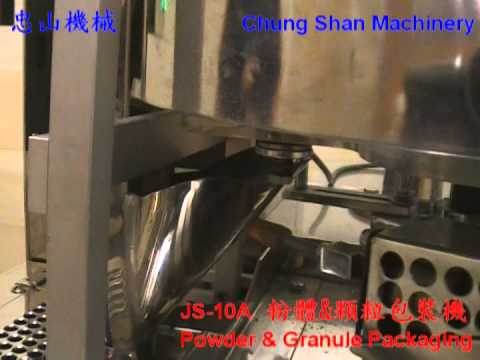

Video
-
