JS-20A Automatic Auger Type Powder Filling & Packaging Machine
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Powder Filling Machine, Granule Packaging Machine, Filling And Packaging Machine, Powder/Granule Packaging Machine and Automatic Auger Type Powder Filling & Packaging Machine.
Application
- Applicable Products：Various powder, such as: seasoning powder, flavor juice powder, milk powder, flour powder, green tea powder, rice powder, cosmetic facial powder…etc.
- Applicable Film：Double layer heat seal suitable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+AL+PE+LLDPE, Nylon+LLDPE…etc.
Features
- PLC control + Servo motor with Touch panel for user friendly operation.
- Touch Panel for easy usage to set up: Filling weight, cutting mode(eye mark or length cutting), bag length, speed, counter, QTY warning, memory record…etc.
- Auger screw filling suitable for light density and hard flowing related powder.
- Auger screw is one-piece formed and which is manufactured of stainless steel 304, comes with food sanitary standards.
- Pneumatic sealing type for nice sealing packaging performance.
- Electronic parts are adopted Japan and German for high efficiency.
- Sealing and cutting operations are air cylinder activated for fast, highly efficient operations.
- Multiple memory programs to record/read different packaging data.
- Auto eye mark tracing in a short time.
- Auto warning display for quick trouble shooting.
- Filling Weight adjustable through panel directly.
- Individual control for film pulling, sealing and cutting.
- Enable to set up required sealing & cutting time.
- Film tension control for stable film filling & pulling.
- Hopper equips with agitator for smooth loading process.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- PID function Temp. controller for each sealing part with stable sealing performance.
- Bag width is adjustable by changing bag former guide.
- Bag length 100-300mm is adjustable on the panel directly
- Attached 1M speed adjustable product output conveyor.
- Machine build with iron cast with stainless steel frame.
- Product input screw conveyor is optional device, incl. auto refill function to work with packaging machine.
Optional Device
- Date coder, hopper level indicator, product input conveyor, nitrogen air connector, and other required device upon request.
-
Sealing Type
Specification
| JS-20A PLC Control + Servo Type + Pneumatic Sealing + Auger filling |
| Sealing Style |
Pillow type packaging |
| Motor |
40W*1, 400W*1, 2KW*1 |
| Power |
220V, 50 or 60 Hz, 3 phase(upon request) |
| Film Width |
240-480mm |
| Bag Length |
100-300mm |
| Filling Weight |
100-500g/500-1000g/1000-1500g (varies with product density) |
| Packaging Speed |
About 10-20 bags/min |
| Machine Dimension |
225 x 150 x 290cm(L x W x H) |
| NET Weight |
830kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |

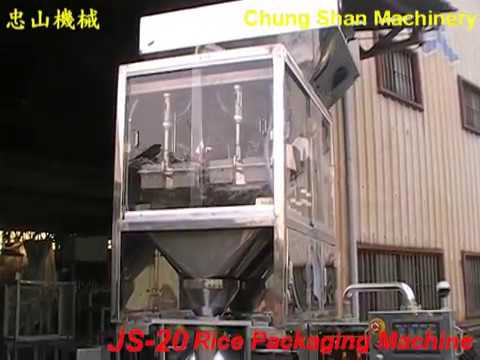

Video
-
