JS-14 Automatic Quantitative Liquid Filling & Packaging Machine (Servo Type+Touch Panel)
Overview
Chung Shan Machinery is a professional manufacturer of Packaging Machine, Filling Machine, Cosmetics Packaging Machine, Liquid Packaging Machine, Cosmetics/Liquid/Paste Packaging Machine and Automatic Quantitative Liquid Filling & Packaging Machine.
Application
- Applicable packing products : Food related, such as: oil, chicken essence, bubble tea, tomato ketchup, soy sauce, paste, chili sauce, honey, juice, wasabi, mayonnaise, jelly…etc.
Cosmetic related, such as: lotion, cream, shampoo, conditioner, foundation, gel…etc.
Other items, such as: grease oil, biotechnology product, and other liquid & paste products.
- Applicable packing materials :Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- Servo Motor control for ease & efficient packaging works.
- 90% setting are through touch panel for user friendly operation.
- Touch panel enable to set up: filling volume, cutting mode (eye mark cutting or length cutting), packing speed, counter, quantity warning, sealing temperature, packaging data memory…etc.
- Speed adjustable mixer device upon request.
- Auto detect function with quick trouble shooting display.
- Multiple memory programs to record packaging data.
- Patent design anti-drop filling function ensure clean sealing performance.
- Piston injection with screw control for accurate filling volume.
- Safety sealing line at side with tight sealing performance.
- Individual temperature controller with PID function for each sealing part.
- Bag width is adjustable by changing bag former guide.
- All component in direct contact with product are made with stainless steel or food sanitary standard.
Optional Device
- Date coder, double jacketed heated hopper, pressure type hopper, level indicator, mixer device, output conveyor, nitrogen air connector, and other required device upon request.
Sealing Type
Specification
| JS-14 Servo Type+Touch Panel |
| Sealing Style |
3 sides, 4 side or pillow type packaging(one option) |
| Motor |
Servo Motor Control |
| Power |
220V, 50/60 Hz, single phase(upon request) |
| Film Width |
60-140mm or 80-220mm |
| Bag Length |
50-200mm |
| Filling Weight |
1-10g / 10-50g / 50-100g (varies with product density) |
| Packaging Speed |
About 20-90 bags/min |
| Machine Dimension |
115 x 103 x 200cm(L x W x H) |
| NET Weight |
420kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |

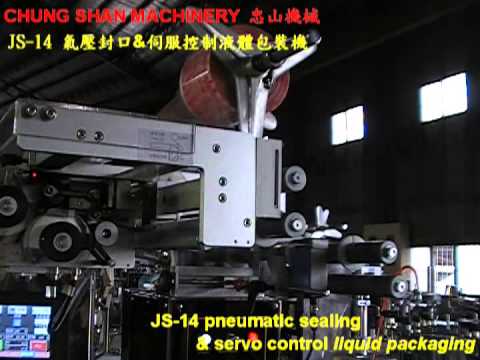

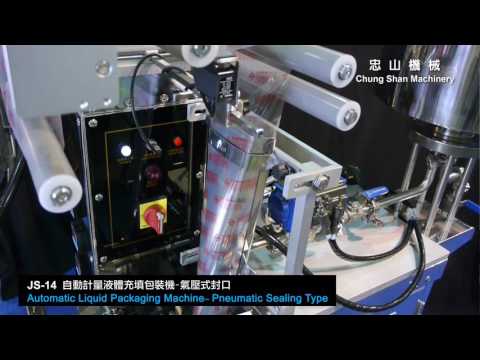

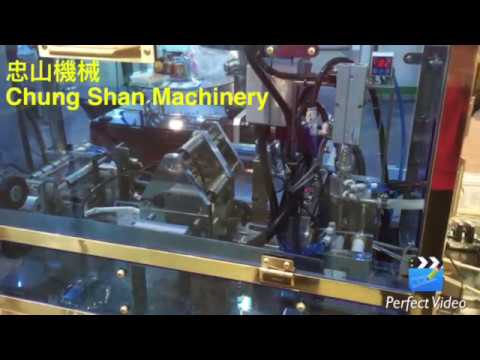

Video
-
