SY-M908D Heavy Vertical & Horizontal Sealing Machine
Features
MODEL: SY-M908D
- Applications: For any premade heat sealable pouch.
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Conveyor length: 3m.
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)
Specification
| Power |
3230W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC200V/220V/240V, single phase50/60HZ |
| Conveying direction |
From left to right |
| Conveyor width |
300mm |
| Bag size |
Within 1000mm Long 500mm Wide |
| Temperature range |
50℃~300℃ |
| Heating power |
600W×2pcs (250mm Long)
600W×2pcs (130mm Long) |
| Conveyor height adjustable range |
500mm |
| Conveyor load weight |
100 Kg |
| Sealing width |
5mm (applicable to PE, PP) or 10mm , either one |
| Packing material thickness |
0.06-0.5mm (double-layer thickness) |
| Packing function |
Sealing |
| Remark |
1. For the standard specifications described above, we reserve the right to change without prior notice.
2. Adjustable sealing angle 0°~90° degree. |
Video

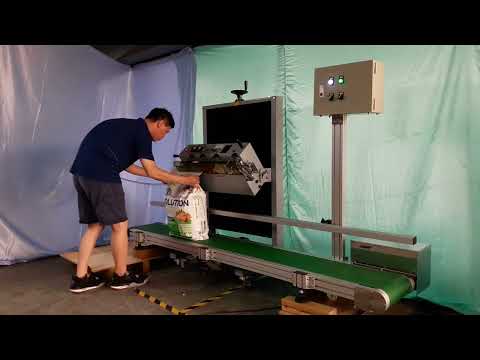

SY-M908D Heavy Vertical & Horizontal Sealing Machine
-
