SY-M904T Desktop Vertical Band Sealer
Features
MODEL: SY-M904T
- Applications for food,chemicals and hardware parts
- Packing materials: any heat sealable material.
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Suitable for product that cannot be sealed by horizontal sealing machine.
- Built-in counting device.
- Built-in anomaly alarm device.
- Built-in speed display.
- Built-in 2 sets of temperature display, temperature control is more stable and accurate.
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)
Specification
| Power |
780W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC100V/110V, AC200V/220V/240V, single phase 50/60HZ |
| Conveying direction |
From left to right |
| Conveyor width |
200mm |
| Bag size |
Within 300mm Long 300mm Wide |
| Temperature range |
50℃~230℃ |
| Heating power |
350W×2pcs |
| Sealing machine height adjustable range |
230mm |
| Conveyor load weight |
2 Kg |
| Sealing width |
5mm (applicable to PE, PP) or 10mm , either one |
| Packing material thickness |
0.26-0.5mm (double-layer thickness) |
| Machine size |
1150*440*480 (mm) |
| Packing size |
1250*550*600 (mm) |
| Packing function |
Sealing |
| N.W、G.W |
60、90 (kg) |
| Remark |
For the standard specifications described above, we reserve the right to change without prior notice. |
Video

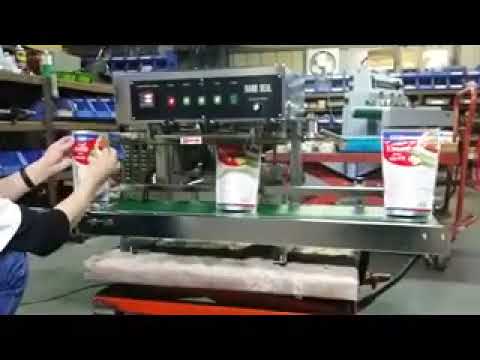

SY-M904T Desktop Vertical Band Sealer
-
