SY-M905HT Vertical Band Sealer
Features
MODEL: SY-M905HT
- Applications for food,chemicals and hardware parts
- Packing materials: any heat sealable material.
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Suitable for product in large package or product that cannot be sealed by horizontal sealing machine.
- Built-in counting device.
- Built-in anomaly alarm device.
- Built-in speed display.
- Built-in 2 sets of temperature display, temperature control is more stable and accurate
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)
Specification
| Power |
780W |
| Packing speed |
0~10 m/minute (fixed speed) |
| Power supply |
AC100V/110V, AC200V/220V/240V, single phase 50/60HZ |
| Conveying direction |
From left to right |
| Conveyor width |
200mm |
| Bag size |
Within 600mm Long 400mm Wide |
| Temperature range |
50℃~230℃ |
| Heating power |
350W×2pcs |
| Conveyor height adjustable range |
500mm |
| Conveyor load weight |
10 Kg |
| Sealing width |
5mm (applicable to PE, PP) or10mm , either one |
| Packing material thickness |
0.06-0.5mm (double-layer thickness) |
|
Machine size
|
1620*640*1660 (mm) |
|
Packing size
|
1720*740*1760 (mm) |
| Packing function |
Sealing |
| N.W、G.W |
140、220 (kg) |
| Remark |
For the standard specifications described above, we reserve the right to change without prior notice. |
Video

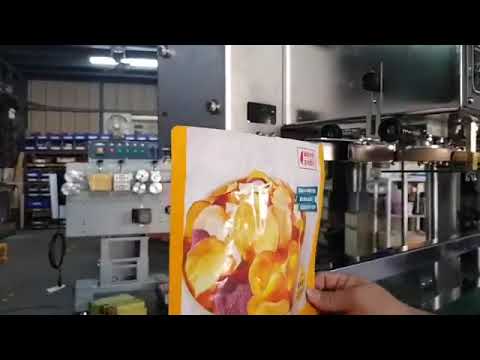

SY-M905HT Vertical Band Sealer
-
