SY-M905V Vertical High-Efficiency Air-suction and Sealing Machine
Features
MODEL: SY-M905V
- Applications for food,chemicals and hardware parts
- Packing materials: any heat sealable material.
- Distance from content to be packed to the bag opening should be over 50mm at least.
- Suitable for product in large package or product that cannot be sealed by horizontal sealing machine.
- The bag is sealed with air extracted to reduce the volume of bag.
- Air extracting device.
- The conveyor height is electrically adjusted.
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)
Specification
| Power |
1760W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC200V/220V/240V, single phase 50/60HZ |
| Conveying direction |
From left to right |
| Conveyor width |
200mm |
| Bag size |
Within 600mm Long 400mm Wide |
| Temperature range |
50℃~300℃ |
| Heating power |
600W×2pcs |
| Conveyor height adjustable range |
500mm |
| Conveyor load weight |
10 Kg |
| Sealing width |
10mm |
| Packing material thickness |
0.06-0.5mm (double-layer thickness) |
| Machine size |
1950*640*1750 (mm) |
| Packing size |
2050*740*1850 (mm) |
| Packing function |
Sealing + air extracting |
| Remark |
For the standard specifications described above, we reserve the right to change without prior notice. |
Video

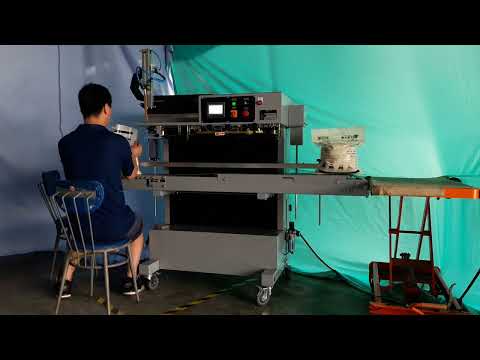

SY-M905V Vertical High-Efficiency Air-suction Sealing Machine
-
