SY-M607 Vertical and Horizontal Sealing Machine
Features
MODEL: SY-M607
- Applications for food,chemicals and hardware parts
- Packing materials: any heat sealable material.
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Conveyor height is fixed (750mm).
Optional devices
- Stainless steel (SUS#304)
- Hot foil coder
Specification
| Power |
780W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC200V/220V/240V, single phase50/60HZ |
| Conveying direction |
From right to left |
| Conveyor width |
200mm |
| Bag size |
Within 300mm Long 300mm Wide |
| Temperature range |
50℃~230℃ |
| Heating power |
350W×2pcs |
| Sealing machine height adjustable range |
500mm |
| Conveyor load weight |
10 Kg |
| Sealing width |
5mm (applicable to PE, PP) or 10mm , either one |
| Packing material thickness |
0.06-0.5mm (double-layer thickness) |
| Machine size |
1630L 700W 1700H (mm) |
| Packing size |
1730L 800W 1800H (mm) |
| Packing function |
Sealing |
| Remark |
1. For the standard specifications described above we reserve the right to change without prior notice.
2. Adjustable sealing angle 0°~90° degree. |
Video

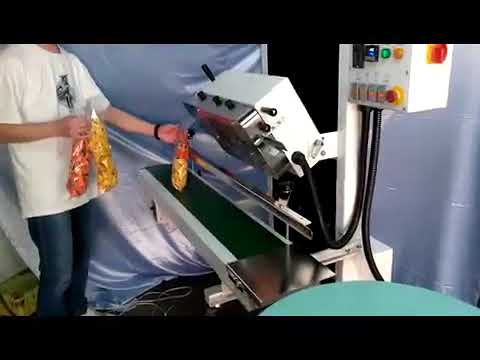

SY-M607 Vertical & Horizontal Sealing Machine
-
