SP-23 Rotary Type Automatic Sealing Machine

Overview
Rotary type automatic sealing machine is a medium-capacity sealing machine, which can reach 900-2400 cups per hour, and can complete the mold changeover in 15 minutes, which is suitable for products with high container variability.

This type of sealing machine is in a small size, which is suitable for customers with site restrictions. In addition, the sealing machine can adjust different feeding device according to the customer's production needs. For Example: Automatic feeding by conveyor - Candy can sealing machine；Manual way to feed the container - Jam sealing machine.
Application
- Plastic Container
Machine Specifications
- Operation Panel
  - A-Type：Traditional Switches and Buttons for simple operation
  - B-Type：HMI-Touch Screen (Proface)
  - Common Part：
    - Variable speed adjustment via speed controller arrange with inverter
    - Additional emergency stop switch for safety protection
- Film Storage Device
- Blank Film Fixer
  - Seal Pack’s patent: to calculate the film length of tray for saving the film cost
- Eye Mark Auto Correction
  - Collocating with a photocell sensor of film pattern mark
- Automatic Sealing System
  - Independent temperature controller for each sealing mold (Brand: OMRON)
- Automatic Cutting System
- Waste Film Automatic Collecting Device
- Product Automatic Out-Feeding System
- Discharge Conveyor
Parts Specifications
- Machine Frame & Sheet: Stainless Steel in accordance with sanitation standard
- Bottom Molds : Anodized Aluminum Alloy
- Intelligent design in the case of no cup, the machine will not automatically fill and seal.
- Fully wired control cabinet complete with wire labels for easy troubleshooting
- Stainless Steel : Springs, Screws, Driving Gear, and Chain
- Pneumatics Parts Brand: FESTO
- PLC Brand: MITSUBISH
Optional Equipments
- 1. Automatic Rinsing Cup System
- 2. Double Layers Conveyor
- 3. Automatic Taping Machine

Specification

Type	Sealing Machine
Container Material	PP / PS / PET / PAPER
Sealing Film Material	Roll Film / Precut foil
Power Supply	Customize
Certification	CE

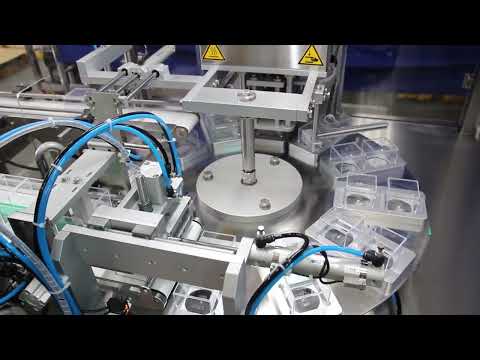

Video
