SP-22 Rotary Type Liquid Filling & Sealing Machine
Overview
Rotary type filling and sealing machine is a medium-capacity filling and sealing machine, which can reach 900 ~ 2400 cups per hour. SP-22 series type of filling and sealing machine is mainly designed for liquid.
Rotary type sealing machine is in a small size and suitable for the customer who have a limited space. In addition, this type of sealing machine also has a quick mold change device, which can complete the mold changeover in 15 minutes also suitable for products with high container variability. For Example:Youge filling and sealing machine、Fish Paste filling and sealing machine、Cosmetic filling and sealing machine。
Application
- Liquid :Water, Sauce, Jelly, Yogurt
Machine Specifications
- Operation Panel
- A-Type：Traditional Switches and Buttons for simple operation
- B-Type：HMI-Touch Screen (Proface)
- Common Part：
- Variable speed adjustment via speed controller arrange with inverter
- Additional emergency stop switch for safety protection
- Film Storage Device
- Film sensor for detect the film when it ran out, the machine will stop automatically
- Eye Mark Auto Correction
- Collocating with a photocell sensor of film pattern mark
- Cup De-nesting System
- Sucking rubber device for falling cups is available
- No Cup No Filling
- Automatic Filling System
- Leave the connection signal of automatic re-feeding at the control system (customer should provide refill pump)
- The filling quantity and speed could be adjusted via valve
- The filling system could be designed based on your product feature. (reference filling option)
- Automatic Sealing System
- 1st sealing: Heat sealing.
- 2nd sealing: Could be designed in Embossing sealing.
- Independent temperature controller for each sealing mold (Brand: OMRON)
- Automatic Cutting System
- To match up the container size, molding cutters are 100% customized.
- Waste Film Automatic Collecting Device
- Product Automatic Out-Feeding System
Parts Specifications
- Machine Frame & Sheet : Stainless Steel in accordance with sanitation standard
- Bottom Molds : Anodized Aluminum Alloy
- Intelligent design in the case of no cup, the machine will not automatically fill and seal.
- Fully wired control cabinet complete with wire labels for easy troubleshooting
- Stainless Steel : Springs, Screws, Driving Gear, and Chain
- Pneumatics Parts Brand: FESTO
- PLC Brand: MITSUBISHI
Optional Equipments
- Automatic Rinsing Cup System
- Double Layers Conveyor
- Automatic Taping Machine
Specification
| Type |
Sealing & Filling Machine |
| Container Material |
PP / PS / PET / PAPER |
| Sealing Film Material |
Roll Film / Precut foil |
| Power Supply |
Customize |
| Certification |
CE |

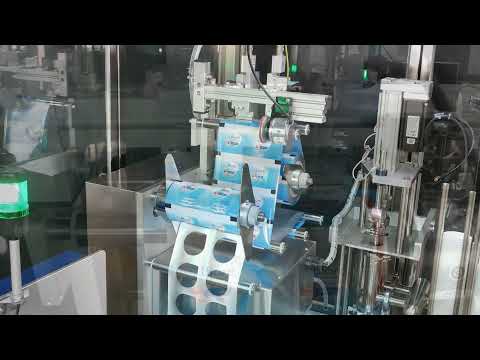

Video
-
