EZpack Co., Ltd.

EZpack is a machinery factory focusing on R&D, manufacturing and continuous improvement of packaging equipment. The main customer groups are the food industry, biotechnology industry and pharmaceutical industry. The offerings cover the field from bottle scrambling, rinsing, filling, tablet counting, capping, labeling and so forth, all designed and manufactured in house.

EZP-H210 Horizontal Form Fill Seal Machine

Overview
The horizontal packaging machine offers the flexibility to choose a suitable feeding system for packaging different materials, ensuring precise filling accuracy. The packaging specifications and dimensions can be adjusted to accommodate a wide range of packaging needs.
Application
- Depending on the selected filling system, it can accurately fill various solid objects, granules, powders, liquids, sauces, and other products.
Features

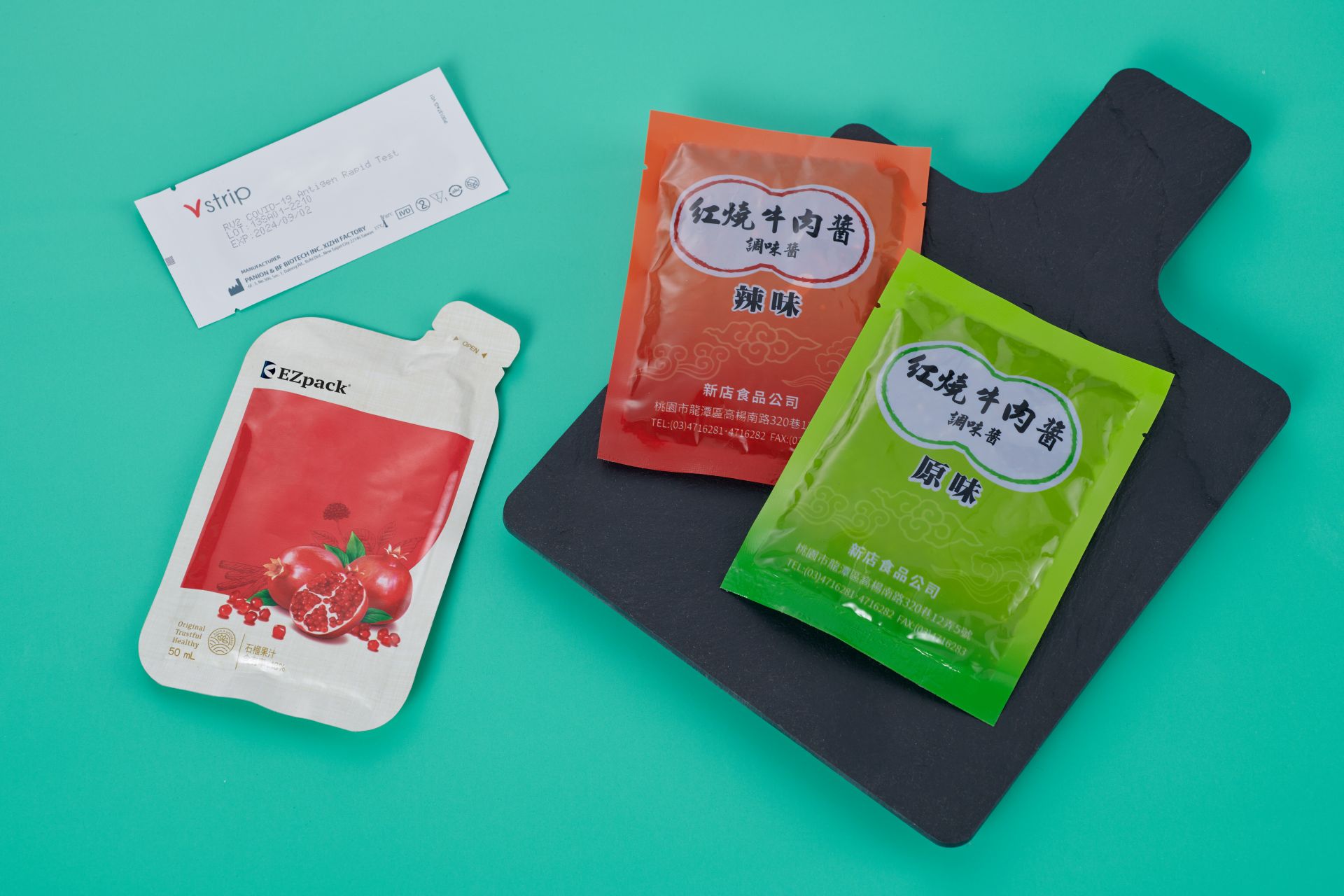

- The horizontal machine can achieve three-side seal, four-side seal, irregular-shaped bags, and stand-up pouches, among other formats.
- The machine can be customized according to specific requirements, including the shape and seal patterns.
- Full-color HMI touchscreen interface for convenient operator setup and monitoring.
- Cam/servo-driven mechanism ensures stability even at high speeds.
- Depending on the characteristics of the filling product, various suitable feeding systems can be selected.
- Low-level detection warning function.

Specification

Model	EZP-H210
Applicable bag type	Stand up bag、Side Seal bag
Bag Size	W:110-320 mm L: 100-200 mm
Filling amount	10g-1000g
Packing speed	20-50 bags / min
Air requests	0.7m3/min
Power supply	AC 220V, 1 ph , 60 HZ, 3.5 KW
Weight	2000 kgs
Filling type	Rotary pump
Machine Dimension	3000 (L) x 1050 (W) x 1600 (H) mm
