TOP-M200-CS Automatic Form-Fill-Seal Packaging Machine with Weighing Machine
Application
- Dry and solid product: Snack, cookie, rice cracker, candy, beans, dry fruit, tea leaf, salt, sugar, nut, spaghetti, raw tapioca ball, coffee bean, chocolate bean, pet food, seed, etc.
- Frozen food: Meat ball, fish ball, hot pot ingredients, chicken nuggets, frozen vegetables, etc.
Features
- Apply to various dry and solid / granule product.
- Mitsubishi PLC control, easy setting / control / adjustment.
- Flexible setting in weighing amount.
- High accuracy in weighing.
- 15 programs setting memory.
- Easy-tear zig-zag cutting on sealing.
- Firm multilineal sealing.
- Productivity increasing.
- Flexible package to conform different weight and requirement.
- Product protection to decrease the environmental influences as microorganisms and humidity... etc.
Package Style
.png) |
Pillow Seal |
Packing Type
Specification
| Model |
TOP-M200-CS |
TOP-M250-CS |
TOP-M300-CS |
| Dimension |
(L) 3500 x (W) 1250 x (H) 2020 mm
|
(L) 3600 x (W) 1470 x (H) 2020 mm
|
(L) 3700 x (W) 1520 x (H) 2020 mm
|
| Bag Size |
(W) 50-200 mm, (L) 50-300 mm
|
(W) 100-250 mm, (L) 100-300 mm
L Type: Max. Length 550 mm
|
(W) 150-200 mm, (L) 150-300 mm
L Type: Max. Length 550 mm
|
| Film Width |
130-430 mm |
230-530 mm |
330-630 mm |
| Film Materail |
Laminated Film - Nylon+LLDPE |
| Capacity |
20-40 bags/min (Depends on product property, weight and filling speed.)
|
| Power |
3Φ, 220V/380V, 50/60Hz, 4.5kW/4.75kW |
| Air Pressure |
6 kg/cm², 5 HP |

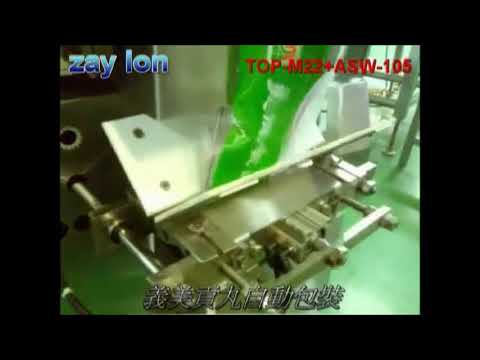

Video
-
