TOP-M10 High Temperature Liquid/Paste Automatic Packaging Machine
Application
- Water, tomato sauce, chili sauce, spaghetti sauce, soybean milk, bean paste, syrup, miso paste, mayonnaise, fruit paste, cheese, liquid egg... etc.
- Gel, cooling gel, shampoo, glue... etc.
.png)
Features
- Apply to high temperature liquid filling up to 95°C.
- Obtained Europe CE certificate.
- Apply to various liquid / high viscosity paste product.
- Mitsubishi PLC control, easy setting / control / adjustment.
- HMI finger touch screen.
- Easy-tear zig-zag cutting on sealing.
- Firm multilineal sealing.
- Productivity increasing.
- Excellent packing performance to meet the sanitary standards.
- Product protection to decrease the environmental influences as microorganisms and humidity... etc.
Package Style
.png) |
3 Side Seal |
 |
4 Side Seal |
Packing Type
.png) |
Paste |
.png) |
Liquid
|
Specification
| Model |
TOP-M10 |
TOP-M10L |
| Dimension |
(L) 700 mm x (W) 680 mm x (H) 1550 mm |
(L) 700 mm x (W) 680 mm x (H) 1550 mm |
| Volume |
5-80 cc |
5-100 cc |
| Bag Size |
Pillow Seal: (W) 30-70 mm, (L) 40-120 mm
3 Side Seal: (W) 30-80 mm, (L) 40-120 mm |
Pillow Seal: (W) 30-70 mm, (L) 40-150 mm
3 Side Seal: (W) 30-80 mm, (L) 40-150 mm |
| Film Width |
60-160 mm |
| Film Material |
Laminated Film - Nylon+LLDPE |
| Capacity |
30-60 bags/min (Depends on product property, weight and filling speed.) |
| Air Pressure |
6 kg/cm², 3 HP |
| Power |
3Φ, 220V/380V, 50/60Hz、1.4kW |
| Integrated Filling Pump |
Water Pump / MONO Spiral Pump / Rotary Pump |

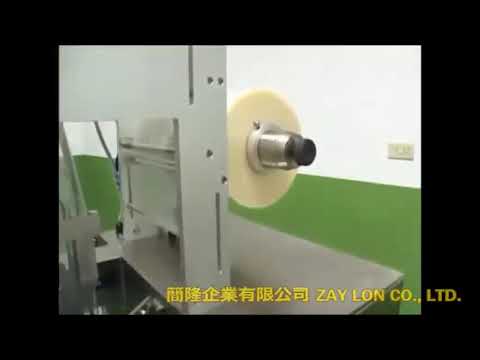

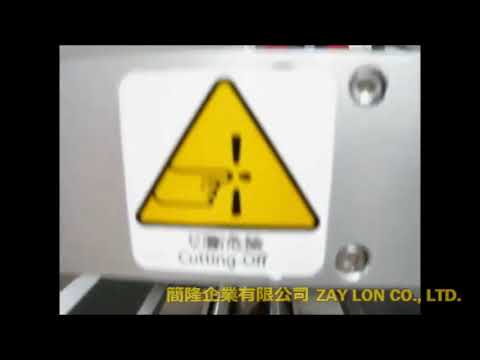

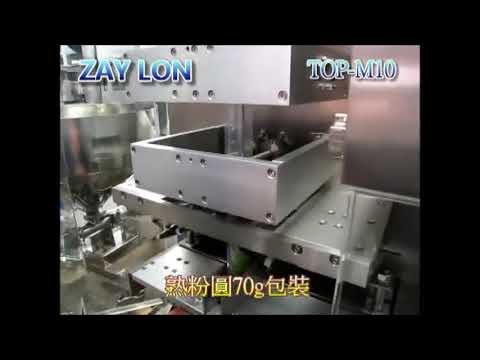

Video
-
