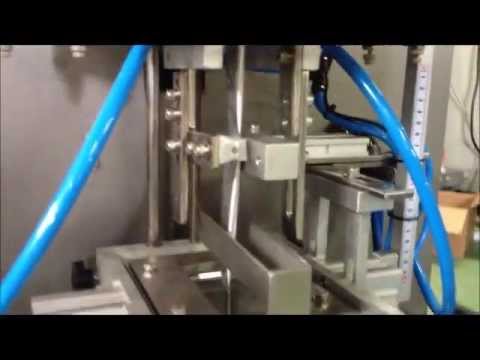

Stick Package Packing Machine CY-M1

Overview
The machine is designed for stick packages for powder, granules and liquid products such as honey, ketchup, jelly, jam, sauce, sugar, creamer or comestic products like shampoo, lotion and so on. Equipping with the suitable dosing method according to the product conditions.

Dosing methods :
Application
- Powder, granules and liquid products.
Features
- Color touch screen
- Servo motor for length control
- Self-diagnostic functions: error and malfunction displays
- Auto print registration correction
- Micro computer temperature control to provide quality sealing
- PLC: programmable logical controller
- Production Records: batching setting, batching counting, total production counts
- Multi Language Selections: English/Chinese

Specification

MODEL	CY-M1
Packing Style	Stick pack with lap seal or fin seal
Bag Size	W:15~40 x L:50~180mm
Film Width Range	35~85mm
Packing Speed	5~40 SACHETS/MIN (subject to film quality, filling volume, and product conditions.)
Voltage	220V, 50/60Hz
Machine Weight	180~200KGS
Machine Size	1070 x 700 x 1750mm
▲ Above specifications for standard machine only. ▲ Actual machine appearance may vary.
