CVC 352 Horizontal Ampule Labeler / Vial Labeler
Overview
The CVC 352 Horizontal Ampule Labeler is built to automatically apply pressure sensitive labels onto round containers that will not convey upright on a conveyor. The CVC 352 comes with a roller chain conveyor and can be purchased with an optional product loader. The CVC 352 is an ideal machine for contract packagers and manufacturers serving the biotech, nutraceutical, cosmetic, and personal care markets.
All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
Features
STANDARD FEATURES
- Siemens control system
- Siemens HMI touch screen
- Stainless steel frame on lockable casters
- Stainless steel flatbed conveyor with table top chain
- Servo motor control
- Label head with up to ± 1 mm accuracy
- Compact design, available with both on-line and off-line operations.
- Type 304 stainless steel construction
- ISO 9001 : 2015 certified
AVAILABLE OPTIONS
- C70 Hot Stamp (Lot/Date Coding)
- Missing Hot Stamp Imprint Check
- Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
- Dataflex or Similar Lot/date Code Printer
- Clear , Metalic or Color Label Sensor
- Product Loader
- Adjustable Tilt for Tapered Bottles
- Custom made Wrap Station
- Automatic Vertical Stand-up Accumulation System
- Camera Detection (OCV System)
- Missing Label Detection System (UV)
- Rejection System
- Rejection System Verification Check
- 3-Color Tower Stack Light
- 21CFR Part 11 Compliance
- OPC UA for Data Collection
Specification
| Technical Specifications |
CVC 352 Technical specifications |
| Power |
220V, single phase, 1100 VA (5 Amp) |
| Air Pressure |
6 bar (87 psi) (ISO 8573-1) |
| Air Consumption |
78.5 NLit/m (2.8cfm) (for optional reject and Lot/Date printer) |
| Consumption Machine Dimensions |
9'-4" x 6'-2" x 6'-2" (2,850 mm x 1,885 mm x 1,890 mm) (L x W x H) |
| Speed |
Up to 300 Bottles per minute (BPM) (subject to our trial confirmation) |
| Label Width / Height |
Configurable from ⅝" to 3 ¾" (15mm - 96mm) dependent on label head type |
| Label Length |
⅝” to 3" (15mm - 75mm) |
| Label Roll |
Max 14" (356mm) outside diameter with 3" (76mm) core |
| Bottle Height |
Configurable from 1 ⅝" to 2 ¾" (40 mm - 70 mm) |
| Bottle Diameter |
Configurable from ⅜" to 1" (10 mm - 24 mm) dependent on conveyor width |
| Conveyor Width |
Configurable up to 5 ⅝" (144mm) / 7 ⅝" (194mm) |
| Conveyor Length |
Standard 63 ¾" (1620mm) (Extendable) |
| Machine Weight |
605 kg (1334 lbs) |
| Noise Level |
70~75 dB |

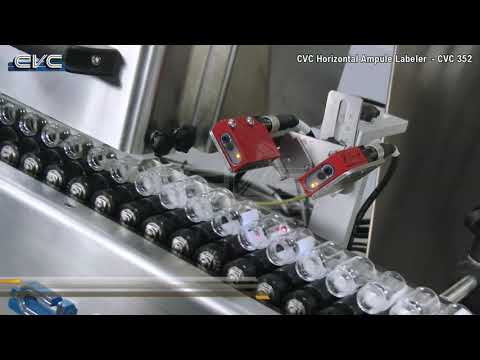

Video
-
