CT-260-10A Conveyor Feeding System Vertical Form-Fill-Seal Machine
Overview
You Xiang Machine Co.,Ltd.is a professional supplier of Packing Machine, Sealing Machine, Fill Seal Machine, Intermittent Packing Machine and Conveyor Feeding System Vertical Form-Fill-Seal Machine.
Application
- Oatmeal, dumpling, green bean, peanut, mixed, beans and sugar, etc.
Features
- With touch screen and PLC control system.
- The file pulling mechanism is driven by servo motor with minimum tolerance.
- Easy operation 4 sets of memory provides easy change.
- The machine is designed for pillow type packaging. (back side sealing)
- High weight accuracy with minimum tolerance.
- Employs Germany KT5W photocell sensor for tracing assuring high accuracy sealing and cutting.
- Easy to adjust packaging sizes.
- Automatic process : measuring→making bag→filling→sealing→cutting
-
Stand Accessories
- Tool box with socket wrench, Hex wrench, Screwdriver.
-
Optional Equipment
- Date coder printer, Finished products conveyor.
Specification
Packing Type |
Pillow Type Packing
|
Packing Weight |
200-1000g |
Packing Size |
W:200-450mm, L:150-290mm |
Packing Speed |
6-15bags/min(depend on the contains) |
Main Motor |
750W |
Power Source |
220 V, 50/60 Hz(Single phase) |
Heater |
Upper sealing 500W x2pcs, Lower sealing 250W x4pcs |

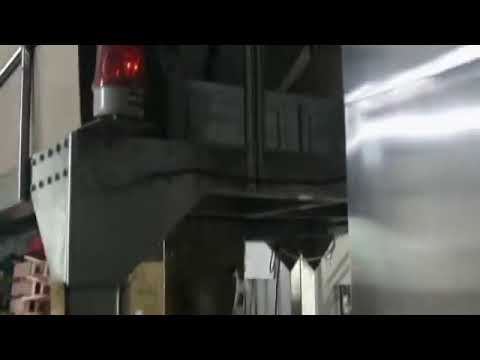

Video
-
