CT-101-L Vertical Liquid Auto Filling Packing Machine
Overview
You Xiang Machine Co.,Ltd.is a professional supplier of Filling Machine, Filling Packing Machine, Continuous Packing Machine and Vertical Liquid Auto Filling Packing Machine.
Application
- Tapioca bubble, shampoo, sauce, fruit vinegar, ketchup and liquid with grain.
Features
- Employs photocell sensor for tracing printing points assuring high accuracy bag forming , sealing and cutting.
- Three sides sealing and four sides sealing are available.
- With finished bags counting function.
- The whole machine and material contact are stainless steel meeting the sanitation requirements.
- Simple package size adjustment.
- Automatic process : measuring→making bag→filling→sealing→cutting
- Design various types packing machine customized.
-
Stand Accessories
- Tool box with socket wrench, Hex wrench, Screwdriver.
-
Optional Equipment
- Date coder, Easy tearing device.
Specification
Packing Type |
Three type packing
|
Packing Weight |
1-30g |
Packing Size |
W:60-160mm, L:50-115mm |
Packing Speed |
20-70bags/min |
Main Motor |
1/2HP |
Power Source |
110/220 V, 50/60Hz |
Heater |
Upper sealing 300W x2pcs, Lower sealing 350W x2pcs |
Machine Dimensions |
600x800x1900mm |
Net Weight |
380kg |
Gross Weight |
420kg |

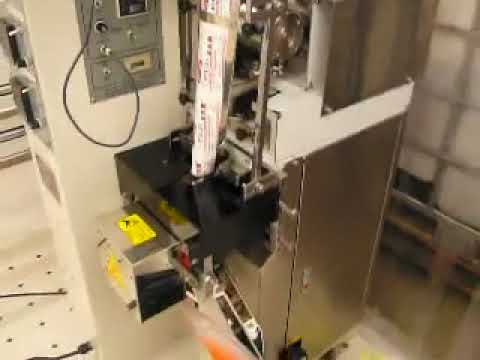

Video
-
