ACF-70 Automatic Capsule Filling Machine

Features
- Tamping filling, get better accuracy and more average weight.
- Vacuum pump using German made dry pump, oil free to gain the usage of the pump, it also easy to clean and maintaining.
- Filling weight adjustable.
- Additional large filter to gain the filter effect making the longer usage of pump and little maintaining, cleaning.
- Fills the powders that running un-smoothly, such as Ganoderma Lucidum, pollen, and royal jelly etc.
- Good quality, easy maintaining and operation.
- IQ/OQ documents are available.

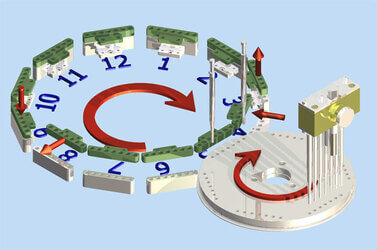

Automatic Capsule Filling Machine is described station by station :
1. Empty capsules are fed from a storage hopper to the rectifier inserted with the aid of vacuum into one of the 12 sets of carrier segment, each holds 7 empty capsules.
2. Upper carrier segment goes down and pushing out.
3. Upper carrier segment goes back.
4. Upper carrier segment goes back completely. (This station is the option for pellet or tablet filling.)
5. Powder slug pushing into the capsule bodies. If there’s no capsule in the segment, then slug fall into the collecting tray.
6. This station is the option for pellet or tablet filling.
7. Space.
8. un-separate or upside-down capsules are pushing out at this station.
9. Upper carrier segment pushing out.
10. Upper and lower carrier segments closed and the joining rods pushing the capsules bodies go up and lock the capsules.
11. Pushing out the finishing capsules.
12. Vacuum suction the carriers, and ready for another rotate.

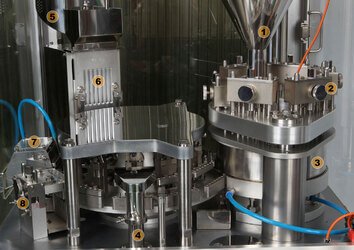

Mechanical parts
1. Powder Hopper
2. Dosing Plunger
3. Dosing Chamber
4. Faulty Rejection
5. Capsule Hopper
6. Capsule Magazine
7. Product Outlet
8. Capsule Joining Station

Specification

Model No	ACF-70
Capacity (caps/hr)	48,000~52,000
Capsule Size	#00，#0，#1～#4
Power Supply	220/380V 3Phase 50/60Hz
Power Consumption	16.1 A
Main drive	2 HP
Auger drice	1/4 HP
Vacuum Pump	1 HP
De-duster	3HP1 Pcs 2000W1 Pcs
Machine Weight	1060 KGs
Dimension	970×1075×1953 mm (L×W×H)
