4 in 1 Blister Packaging Machine (Alu-Alu)

Overview

ALU-ALU FORM PACK DK-PS 2000A/3000A/4000A
Features
- Sufficient process time.
- Constant and relatively low sealing temperature over the full sealing.
- Low energy cost.
- Flexibility to seal a range of lid materials.
- Proportional heat control with only +/- 5°C variation.
- Uniform pressure distribution over the full platen surface.
- Heat transfer to product is avoided.
- Absorption of sealing load within the station.
- Separation of indexing and sealing functions.
OPTIONAL ACCESSORIES:
- Slitter station or perforation station.
- Auto feeding device for capsule with orientation.
- Vibrator auto feeding device for Tablet/Caplet.
- Discharge conveyor device.
- Safety guard.
- Missing check.
- Printed mark controller.
PROCEDURE:
- Forming film of reel support with automatic unwinding system.
- Plate heating system. Lift-off on machine stop.
- Compressed air forming station.
- Filling device (Automatic or manual).
- Coverfoil of reel support with automatic unwinding system.
- Guide rails.
- Sealing station.
- Cooling station.
- Punching station.
- Waste winding unit.

Specification

DK-PS 2000A

DK-PS 3000A

DK-PS 4000A

Formed area available
(max mm)

100(W)x120(L)

110(W)x150(L)

110(W)x190(L)

Form film thickness
(mm)

250-350 micron

Lid foil width
(max mm)

124

154

195

Forming depth
(mm)

13
(or as require)

Reel diameter
Film (max mm)
foil (max mm)
core (mm)


400
240
70-76


400
240
70-76


400
240
70-76

Conveying length
(max mm)

112

Capacity / Strokes
(max)

Electrical Connection

220V,380V,
440V50 Hz
or 60 Hz

Compressed
air Consumption

36.9-52.4 CFM
at 7Kg/Cm²
G1045-1484 L/Min

52.4-82.4 CFM
at 7Kg/Cm²
G1484-2334 L/Min

Cooling water
Consumption

0.06m³-0.1m³/ Hr15^oC-20^oC

0.18m³-0.3m³/ Hr15^oC-20^oC

Floor space
(approx mm)

3260Lx800W
x1550H

MAIN MOTOR,
HEATER

1/4HP, 3-4W

1/4HP, 4-6W

1/4HP, 5-7W

Shipping Data:	G.W. Kg
(approx)	N.W. Kg Cu-Ft

1000
700
190

1100
800
200

1200
900
200

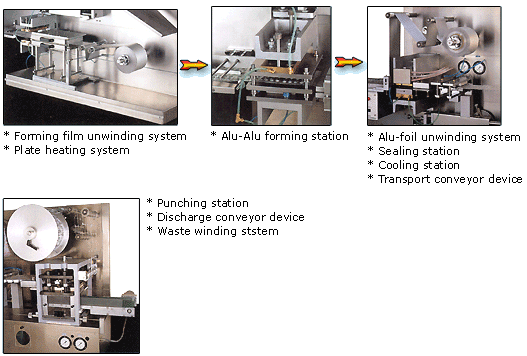

Flow Chart:

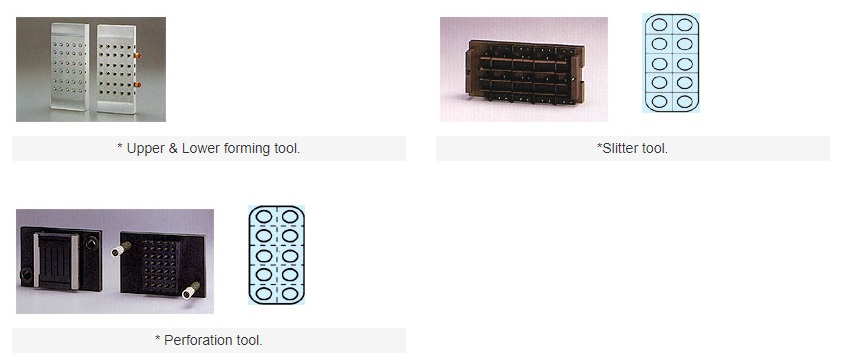

Mould:

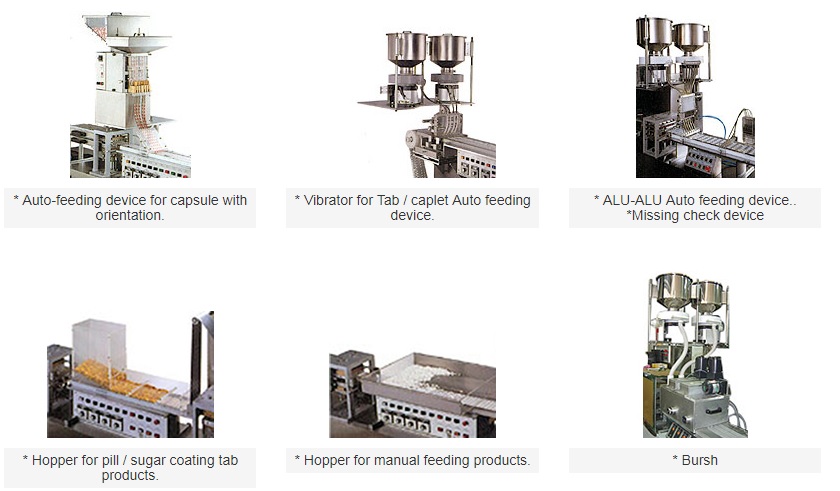

Feed Systems:
