KW-B2 Blister Packing Machine(Hardcover)
Overview
KW-B2 (Hardcover) blister packing m/c applies the latest technology contribute to a low cost, low packing material consumption, low running cost, however the efficiency is extremly high. Precisely product loading apparatus creates a non-stop operational performance which in need of only one operator.KW-B2 suit for tablets, sugar coating / film coating, hard / soft gelatine capsule for blister packing.
Features
- Continuous roll feeding for low noise and maintenance.
- Cross perforation of the blister cards.
- Contact heating of PVC film allows low temperature and uniform blister formation at various machine speeds.
- No waste / no trimming card cutting feature saves material.
- Safety indicator lights facilitate trouble shooting.
- Size changes easily accomplished in less than 20 minutes making this a truly versatile machine.
- P.I.D. temperature controls for precise blister forming, sealing, perforation and coding.
- Product feed track allows for manual product feeding if desirable.
- Includes blister counting controls.
- Can easily be changed over to handle tables, capsules and soft gel capsules.
- Ec speed variable main-motor.
Machine components
- Mechanical drive mechanism
- Control panel with safety indicator lights
- Packaging material feed system and pull-through rollers
- Pre-heating station
- Track system for manual product feeding
- Thermoforming station
- Foil feed system
- Sealing station
- Embossing / coding facility
- Perforation station
- Punching / trimming station
- Cycle counter
- P.I.D. temperature controller
- Tablet feeder or capsule feeder with orientation
- Optional water cooling system
- Optional empty blister detection / rejection
- Optional preprinting film registration
Option
.jpg)

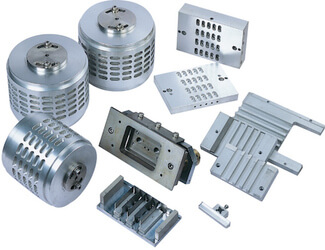

Tooling Change Parts
.jpg)
Vibrating Feeder
.jpg)
Change Over of Vibrating Feeder
.jpg)
Automatic Capsule Feeder with Orientation
.jpg)
Vibrating Feeder
Specification
- Maximum output: 40 cycles / indexes per minute
- PVC size: Up to 155mm wide-350microns
- Platen Forming Area: 140mm x 78mm maximum
- Depth of Drawing: Hole depth standard is 12mm
| Dimensions |
| Length |
3200mm |
| Height |
1650mm |
| Width |
1050mm |
| Weight |
950kg |
| Power Requirements |
| Power |
220 / 240 volts, 3 phase; 50 / 60 Hz |
| Consumption |
4.2KW |
| Air |
7 cfm @ 70psi |
Video

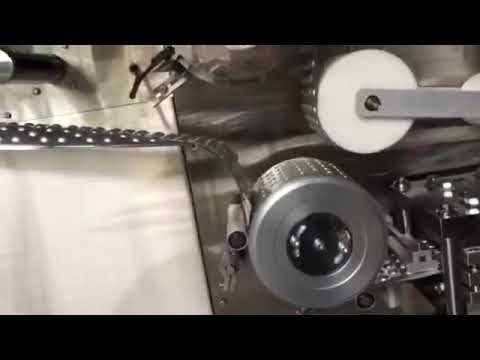

Blister packing and Capsule feeder with Orientation

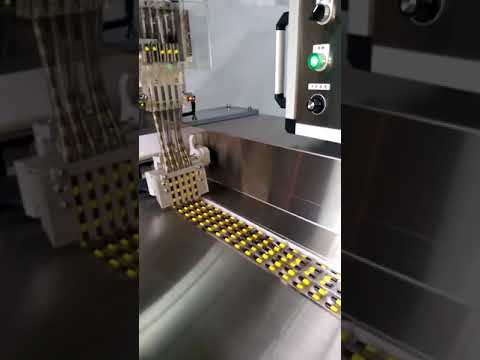

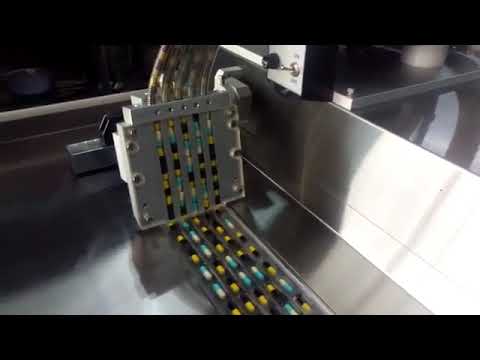

Capsule feeder with Orientation

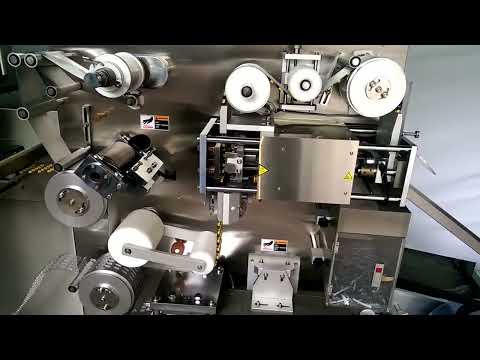

Blister packing for alu alu
Blister packing Double filling for Alu-Alu

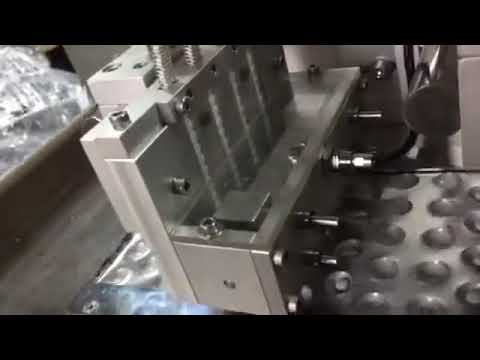

Blister packing Vibration filling system
-
