GY-400E ~ 1200E (CUSTOMIZED) Rectangular Vibration Separator

Application
This machine is ideally for sieving and separating powder, particle and slurry in many industries, such as ceramics, food processing, pharmaceuticals, chemicals, bio - chemicals, electronics, plastic, rubber, grinding, recycle and etc.
Note
- Please check whether the machine model and specification are the same as your order. Power supply is the same as shown on the machine plaque. (Tolerance for voltage is + / - 10 %)
- Prior to operate the separator, ensure all the components are fastened, no broken on the sieves, no damage on the machine body, electrical cables and earth are connected properly ( do not use a knife switch ), and three phase power supply is ready.
- The minimum distance from wall is 500 mm, leveling and installing firmly.
- Turn off power supply while not in operation. Do not splash water on motor or cables to avoid any leakage current.
- Keep the screen clean all the time. Various cleaning detergents may be used according to the material been sieved. Do not apply sharp objects on the screen to avoid any damage.
- This separator is suitable for continuous and steadily material feeding. The maximum gap between the outlet of material supply mechanism and the inlet of the separator is 150mm. Alternatively, a buffer equipment can be fit in between. (The separator can not bear any type of external load.) The volume of feeding is based on whether the screens can sieve without piling.
- This machine is guaranteed for one year under normal operating condition. Please contact our offices or distributors should any irregularity arise during the one-year period. Do not under any circumstances attempt to make any repairs or replacements.

Specification

Model	Power (HP)	Frequency (Hz)	Speed (RPM)	Centrifugal force (kg)	Effective screen area L. (mm) / W. (mm)	Net wt. (kg)	Capacity (tons / h r)
GY-400E	0.2	50 / 60	1470 / 1720	250	340 / 590		0.1 ~ 0.3
GY-600E	0.5	50 / 60	1470 / 1720	600	606 / 910	145	0.25 ~ 0.55
GY-800E	1	50 / 60	1470 / 1720	800	800 / 1360		0.5 ~ 1
GY-1200E	2.5	50 / 60	1470 / 1720	1600	956 / 1860	834	1.2 ~ 2.3

(Capacity isEstimated based on applying mesh #60. Actual capacity may vary from materials and other factors.)

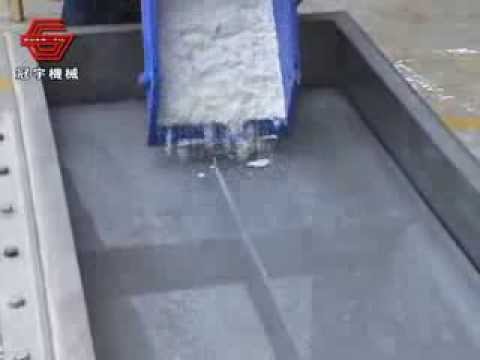

Video
