Established in 1987, Chyun Jye Machinery (CJM) holds the faith of selling self-designed, innovative products and continuous R&D. With the worldwide market trend, only improve and upgrade the quality of machines will satisfy the customer various and strict requirements in nowadays. Based on the strong faith, now, CJM has become the irreplaceable supplier in Filling, Capping, Labeling,and Cartoning markets.

Automatic Filling and Capping Machine

Application: Suitable for various liquid products such as Pharmaceutical, Biotech Foods, Cosmetics, House care, Chemicals, etc.

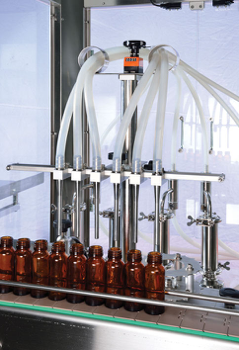

Filling System:

  • Bottom filling system prevents foaming and spilling during high speed filling.
  • Bottle block turning disc with counting function decreases the time of waiting for the next bottles coming in.


     Filling piston device:

  • Stainless steel is polished and hard chrome plating for strengthening abrasion hardness which prevents contamination.
  • The filling piston is controlled by PLC and servo motor. The different filling volumes and filling speed can be adjusted easily from the HMI touch screens.

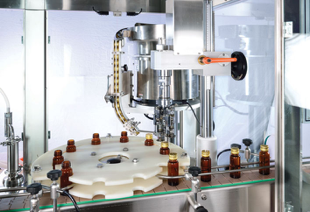

     Capping device:

  • Offers low-particulate capping suitable for closing general glass bottle with AL ROPP cap. It is also suitable for screw or snap-on caps by changing the capping head.
  • The machine is equipped with safety system - the machine will stop automatically in case of any bottle jams or in improper positions.
Model CJ-250 Automatic Filling and Capping Machine
Filling Volume 5-60ml, 30-150ml, 100-500ml
Capacity 30-60 bottle/min(depends on different filling volume)
Power 220V single phase, 50/60HZ, 2.03KW
Air (supplied by user) 10L/min, 4-6 bar
Machine Dimensio 3162Lx1245Wx1738H (mm)
Machine Weight 1100Kgs
