ABL-M Automatic Round Bottle Labeling Machine (Cold-glue Type)
Overview
- The labeling equipment is suitable for glue type labels. The entire equipment is mechanical controlled system to stabilize machine operation and output productivity. Minor parts change and simple adjustment is necessary for different products to be convenience to machine application.
Layout
Specification
| Models |
ABL-M |
ABL-ML |
ABL-MX |
| Bottle Diameter |
16-40mmD |
30-80mmD |
50-120mmD |
| Label Size (LxH) |
50-100 x 20-80 (mm) |
50-130 x 40-110 (mm) |
100-360 x 40-110 (mm) |
| Working Capacity |
40-60 bottles/min |
40-60 bottles/min |
30-50 bottles/min |
| Glue type |
Resin |
| Power Consumption |
220V single phase, 50/60HZ |
| Air Consumption |
10 L/min @ 6 Bars |
| Machine Dimensions (LxWxH) |
2200x900x1500 (mm) |
| Machine Weight |
500KGS |

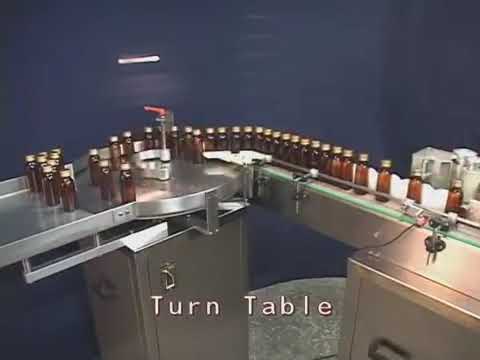

Video
-
